Round Bottom Flask, 4-Neck, Angular

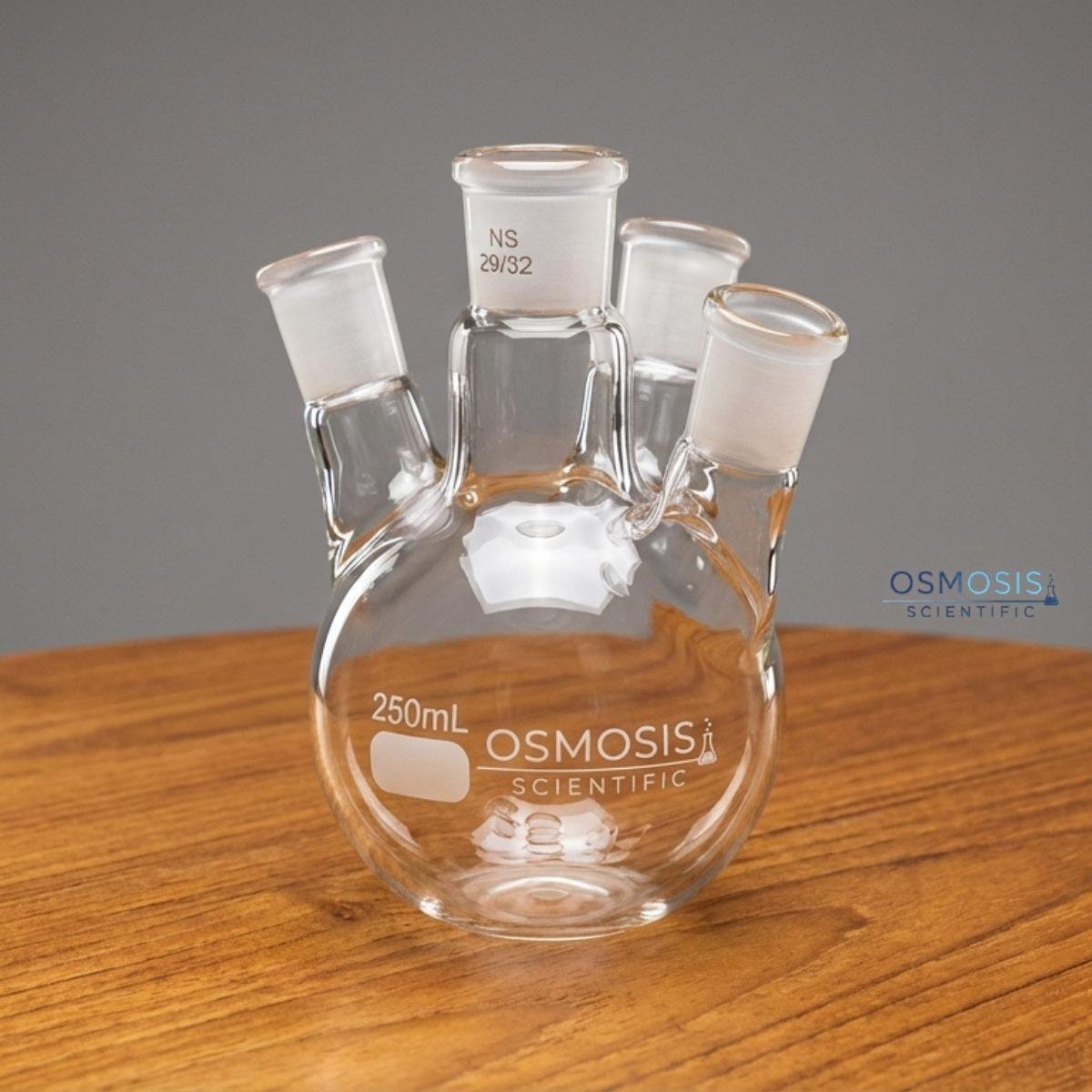

Round Bottom Flask, 4‑Neck, Angular from OsmosisScientific is a heavy‑duty borosilicate 3.3 reaction and distillation vessel designed for the most demanding multi‑connection setups in organic synthesis, pharmaceutical scale‑up, and industrial processes. The spherical bottom ensures uniform heating in mantles or oil baths, while one central vertical neck and three side necks inclined at approximately 20° provide maximum flexibility for simultaneous connection of condensers, thermometers, mechanical stirrers, dropping funnels and gas inlet/outlet lines.

Note: This Round Bottom Flask, 4‑Neck, Angular is manufactured to DIN 12392 and USP standards but supplied without an individual batch or calibration certificate, making it ideal for routine large‑scale synthesis, distillation and teaching applications where certified volumetric traceability is not required.



SKU: RBF-4N-ANG-0250-24-14 Category: Brand: Product ID: 20701

Description

Round Bottom Flask, 4‑Neck, Angular – DIN/USP Capacities, Joint Sizes & Product SKUs
Capacity (ml)Centre Socket SizeSide Socket SizePack ofProduct SKUEnquiry
10024/2914/231RBF-4N-ANG-0100-24-14Enquire for 100 ml
10024/2919/261RBF-4N-ANG-0100-24-19Enquire for 100 ml
25024/2914/231RBF-4N-ANG-0250-24-14Enquire for 250 ml
25024/2919/261RBF-4N-ANG-0250-24-19Enquire for 250 ml
50024/2914/231RBF-4N-ANG-0500-24-14Enquire for 500 ml
50024/2919/261RBF-4N-ANG-0500-24-19Enquire for 500 ml
50024/2924/291RBF-4N-ANG-0500-24-24Enquire for 500 ml
50034/3524/291RBF-4N-ANG-0500-34-24Enquire for 500 ml
100024/2914/231RBF-4N-ANG-1000-24-14Enquire for 1 L
100024/2919/261RBF-4N-ANG-1000-24-19Enquire for 1 L
100034/3519/261RBF-4N-ANG-1000-34-19Enquire for 1 L
100034/3524/291RBF-4N-ANG-1000-34-24Enquire for 1 L
200024/2914/231RBF-4N-ANG-2000-24-14Enquire for 2 L
200024/2919/261RBF-4N-ANG-2000-24-19Enquire for 2 L
200034/3519/261RBF-4N-ANG-2000-34-19Enquire for 2 L
200034/3524/291RBF-4N-ANG-2000-34-24Enquire for 2 L
300034/3519/261RBF-4N-ANG-3000-34-19Enquire for 3 L
300034/3524/291RBF-4N-ANG-3000-34-24Enquire for 3 L
500034/3519/261RBF-4N-ANG-5000-34-19Enquire for 5 L
500034/3524/291RBF-4N-ANG-5000-34-24Enquire for 5 L
1000055/4424/291RBF-4N-ANG-10000-55-24Enquire for 10 L
2000055/4424/291RBF-4N-ANG-20000-55-24Enquire for 20 L
